SKF CMAS-100-SL

Machine monitoring, made simple.

The SKF Machine Condition Advisor is a rugged, easy-to-use, hand held device that simultaneously measures vibration signals and temperature to indicate machine health and bearing damage - providing early warning of machine problems before a costly breakdown occurs.

Essential plant equipment such as pumps, fans, motors, compressors, gear boxes, cranes and conveyors rely on bearings to keep machines running.

Using the SKF Machine Condition Advisor to measure both the machine condition and bearing activity for changes in vibration and temperature, operations or maintenance staff can detect a pending machine failure before it results in lost production, unplanned downtime and machine damage.



Features

• Quick and easy to set up and use
• Compact, durable and ergonomically designed
• Automatically compares measurements to established standards
• Alert and Danger prompts provide diagnostic confidence
• Efficient, economical and environmentally friendly

Benefits

• Avoid costly failures
• Plan maintenance
• Reduce maintenance costs
• Improve machine reliability
• Ideal for both expert and novice users

Multiple measurements with a single device



The SKF Machine Condition Advisor provides an overall "Velocity" vibration reading that measures vibration signals from the machine and automatically compares them to pre-programmed International Organization for Standardization (ISO) guidelines. An "alert" or "danger" alarm displays when measurements exceed those guidelines.



Accuracy, flexibility and confidence



When performing measurements, the Machine Condition Advisor's acceleration sensor input signal is processed to produce two different measurements for each POINT on the machinery - overall velocity and enveloped acceleration. At the same time, the SKF Machine Condition Advisor's non-contact infrared sensor measures the surface temperature of the measurement location and simultaneously displays all three measurements.



Kit Includes:

• (1) SKF-CMAS-100 Machine Condition Advisor
• (1) SKF-CMAC-8002 Universal DC Power Supply, +5V, 1600 mA
• (1) SKF-CMAC-101 Charger Adapter
• (1) SKF-CMAC-102 Belt Holster

Note: Items listed above are included when purchasing the SKF-CMAS-100-SL Machine Condition Advisor Kit below. Other items listed on this page are replacement or optional parts. Contact us for details if needed.

SKF TMEH 1 OilCheck Oil Condition Meter

The TMEH 1 OilCheck detects and measures the dielectric constant of oil. By comparing the measurements obtained from used and unused oils of the same brand, the SKF OilCheck is able to determine the degree of change in the condition of the oil. Dielectric change is directly related to the degradation and the contamination level of the oil and will allow the user to achieve optimised intervals between oil changes and detect increased mechanical wear and loss of the oils lubricating properties. To facilitate trending the instrument is equipped with a numerical read-out.   Through its comparative operation OilCheck is able to show changes in oil condition affected by water content, fuel contamination, metallic content and oxidation, to within a typical repeatability factor of better then five per cent. These results in turn provide an indication of the loss of lubricating properties of the oil and also of and mechanical wear in the equipment in which the oil is used. The TMEH 1 is a compact (250mm x 95mm x 32mm) unit that will last for more than 150 hours or 3,000 tests on one 9V alkaline battery. Applications: Diesel Engines Gasoline Engines Natural Gas Engines Natural Gas Turbines Automatic Transmissions Any other equipment using petroleum or synthetic lubricants Features: Shows changes in oil condition affected by such things as: Water content Fuel contamination Metallic content Oxidation Hand held and user friendly Numerical read-out to facilitate trending

SKF-TKGT 1 Grease Test Kit

Portable grease analysis kit for use in the field

Lubricant analysis is a vital part of a predictive maintenance strategy. However, until now, this has been almost completely related with oils, despite the fact that around 80% of bearings are lubricated with grease. Tribology knowledge and years of research have allowed SKF to develop a complete methodology to assess greases condition directly in the field.



The SKF Grease Test Kit TKGT 1 has been designed to properly apply this methodology. By using it, three different tests can be performed: consistency (patent applied for), oil bleeding properties and contamination. This allows the user to have a good understanding of the grease condition and take decisions directly in the field. The
SKF TKGT 1 includes guidelines for properly interpreting the results of the tests.



For fresh greases SKF TKGT 1 can help to establish the remaining shelf life of the grease, as well as assesing the consistency of the quality level among different production batches. When testing used greases, the results will help the user to evaluate such things as: the suitability of the tested grease for the application, the accuracy of relubrication intervals, and the possible sources when contamination occurs.



Features:

• Portable kit, designed to be used directly in the field
• No special training required to perform the tests
• No harmful chemicals required
• The methodology included with the kit brings SKF lubrication knowledge to the customer in order to properly understand the results of every test
• Small sample size required
• Just 0.5 grams of grease are needed to perform all the tests
• Quick assessment tool allowing taking decisions directly in the field

With the TKGT 1 you can analyze three grease properties:

1. Grease consistency

2. Oil bleeding characteristics

3. Oil bleeding characteristics



By performing these tests and using the methodology described, you will have a better understanding of the condition of your greases, enabling you to take proper actions to keep your machines in good shape.





Enerpac P-Series, Hydraulic Lightweight Hand Pumps

P-Series, Hydraulic Lightweight Hand Pumps Enerpac high pressure, hydraulic lightweight hand pumps feature a compact design and are available in single and two speed pump types Durable glass-filled nylon reservoir and nylon encapsulated aluminium pump base for maximum corrosion resistance Two-speed operation reduces handle strokes by as much as 78% over single speed pumps Lower handle effort to minimize operator fatigue Integral 4-way valve on P-842 for operation of double-acting cylinders Handle lock and lightweight construction for easy carrying Large oil capacities to power a wide range of cylinders or tools Non-conductive fiberglass handle for operator safety Internal pressure relief valve for overload protection. For use with cylinder Pump Speed Usable Oil Capacity Model Number Pressure Rating** Oil Displacement per Stroke Max. Handle Effort Piston Stroke Weight bar cm3 S/A D/A Single Two cm3 1st stage 2nd stage 1st stage 2nd stage kg mm kg •  – •  – 327 P-141 – 700 – 0,90 32,7 12,7 2,0 •  – •  – 901 P-391 – 700 – 2,47 38,6 25,4 4,1 •  –  – • 327 P-142* 13 700 3,62 0,90 35,4 12,7 2,0 •  –  – • 901 P-202 13 700 3,62 0,90 28,6 12,7 3,4 •  –  – • 901 P-392* 13 700 11,26 2,47 42,2 25,4 4,1 •  –  – • 2540 P-802 27 700 39,33 2,47 43,1 25,4 8,2 – •  – • 2540 P-842 27 700 39,33 2,47 43,1 25,4 10,0 * Available as sets (Cylinder, gauge, couplers, hose and pump) ** Contact Enerpac where operating pressure is less than 10% of pressure rating

Enerpac HPT-Series, Tensioning Hand Pump

HPT-Series, Tensioning Hand Pump Enerpac tensioning hand pump is a lightweight and portable high-pressure hand pump Two-speed pump operation displaces a larger volume of oil per stroke, reducing cycle times for many testing applications Includes a gauge and coupler for direct connection to GT-Series bolt tensioners Integrated relief valve set at 1522 bar. Pump Type Useable Oil Capacity Model Number Pressure Rating Oil Displacement per Stroke High Pressure Oil Port Weight (bar) (cm3) (litres) 1st stage 2nd stage 1st stage 2nd stage (BSPP) (kg) Two Speed 2,54 HPT-1500 14 1500 16,22 0,61 1/4" 120˚ Cone 9,0

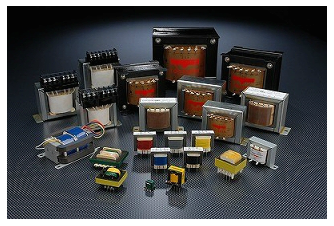

Toyozumi Dengenkiki UL/CSA Transformers

Toyozumi Dengenkiki Single and Three Phase Foreign Standard Complaint Power Transformer Series Obtained UL 506/C 22.2 No. 66 Standard (with authorization mark) IEC61558 Standard Compliant (CE marking) Made using L94V-O Authorized Materials RoHS Directive Compliant UEE model Single Stage, Multicoil, 50/60 HZ Class 155/F Insulation Primary - Secondary/ Iron Core/ Shield. Secondary - Iron Core/ Shield Voltage Resistance 4KV Optional configurations for Earth Iron Core, Grounded (G) Static Electricity Shield, and Core Anodes as standard equipment. The Recognized Component Mark, standard in the US and Canada, is displayed on the body for both the UL standard and C-UL(CSA) standard, and is necessary for the export of a product to the US and Canada. At Toyozumi Dengenkiki, we undergo a UL follow up service four times a year (factory examinations at irregular intervals), and maintain our product quality. Series Phase Primary(V) 〔choice〕 Secondary(V) 〔choice〕 Secondary(A) 〔choice〕 UEA 1φ 100/110/115/120 20/22/24 10/15/20 UEB 1φ 100/110/115/120 100/110/115/120 3/5/7.5/10/15/20 /30/40/50 UEC 1φ 200/208/220/230/240 20/22/24 10/15/20 UEE 1φ 200/208/220/230/240 100/110/115/120 3/5/7.5/10/15/20 /30/40/50 UEF 1φ 200/208/220/230/240 200/208 /220/230/240 3/5/7.5/10/15/20 UEK 1φ 380/400/415/440 /460/480 100/110/115/120 3/5/7.5/10/15/20/30/40 UEL 1φ 380/400/415/440 /460/480 200/208 /220/230/240 3/5/7.5/10/15/20 UET() 3φ 380/400/415/440 /460/480 200 10/15/20/25/30 UET() 3φ 380/400/415/440 /460/480 200 10/15/20/25/30 ES21 series ES21 series Single Stage CE Marking Compliant Power Transformer Series EN61558 Standard Compliant (CE Marking) RoHS Compliant Product Single Stage, Multicoil, 50/60 Hz, Class B Insulation Primary - Secondary/ Iron Core/ Shield Voltage Resistance 3.64 KV Secondary/ Iron Core/ Shield Voltage Resistance 1.65 KV Standard equipment of Earth Iron Core, Static Electricity Shield (G), and Core Anodes Capacity 300VA ~ 5KVA CE Marking, which is displayed on the UE Series and ES21 Series, indicates that the products have received confirmation of fulfilling the requirements for EU directives, and products without this mark cannot be exported to or sold in European economic areas (the 25 EU countries, Iceland, Norway, and Lichtenstein). Also, at Toyozumi Dengenkiki production facilities, in order to maintain our license as a manufacturer of EN standard compliant power transformers, we undergo yearly regular TÜV facility inspections, and maintain our product quality. www.alat-ku.com
